Whole-Home Filtration Systems
BFD (Best Filter Design) High-Flow Cartridges are point-of-entry filter elements engineered for whole-home, light-commercial, and industrial pre-treatment applications. With flow capacities from 7.5 to 30 GPM, robust construction, and customizable media options, they deliver consistent 5 µm chlorine reduction & scale control—protecting plumbing, appliances, and fixtures from contaminants and mineral build-up. zariawater.com waterserviceelite.com
Applications & Target Users
Primary Customers
Residential homeowners & families
Small offices, breakrooms & commercial suites
Light-industrial sites (laundromats, workshops)
Property managers & multi-unit dwellings
Installation Locations

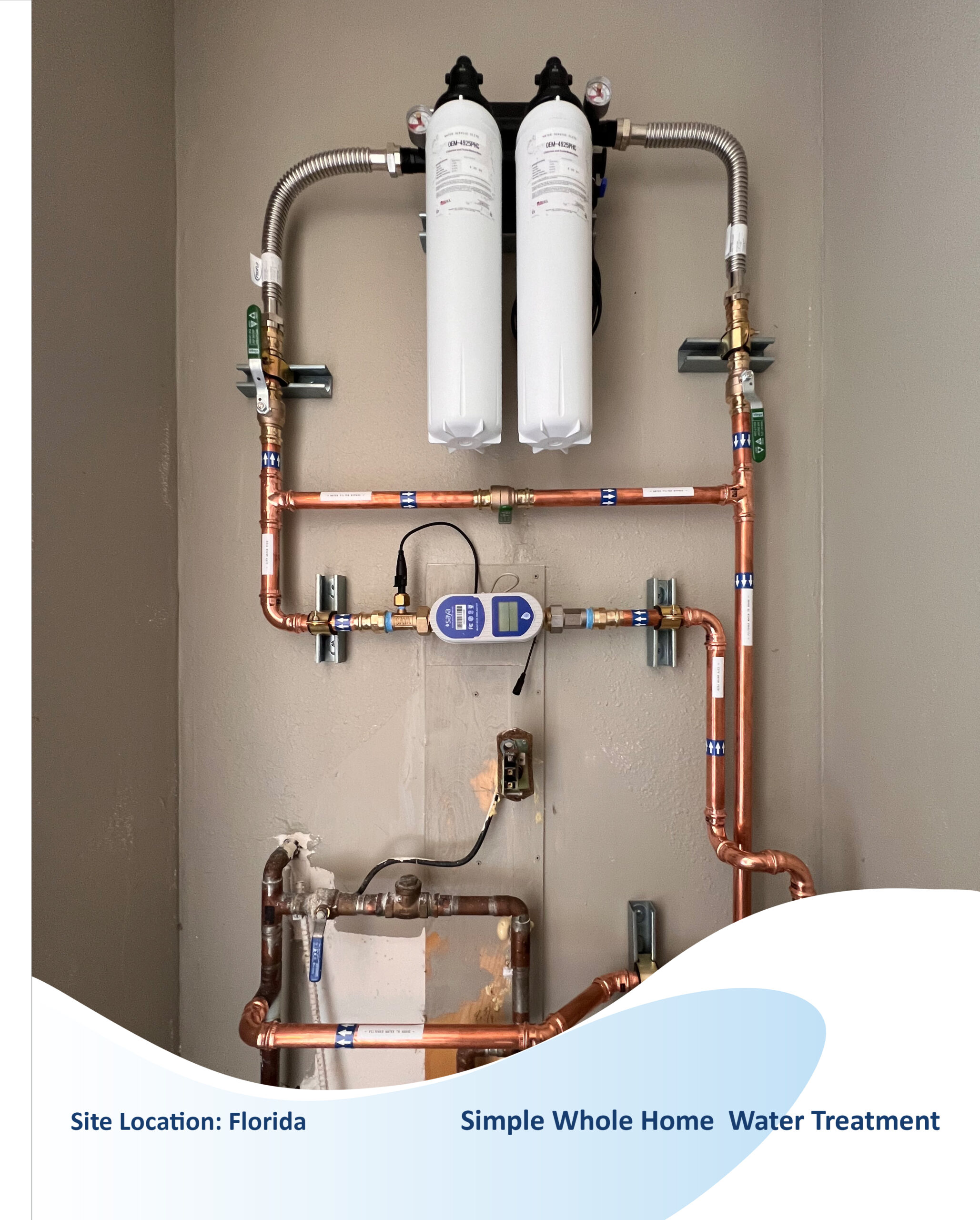

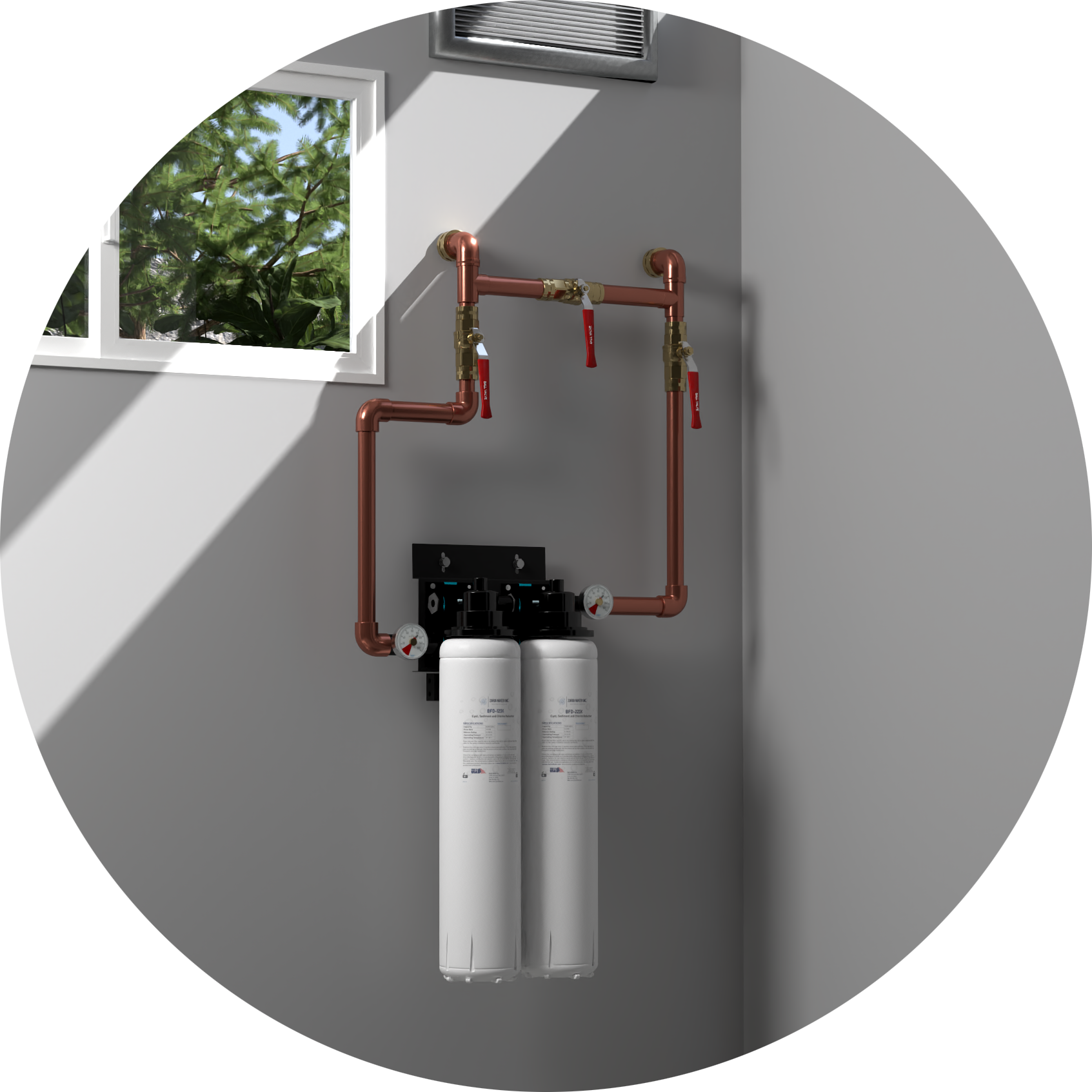

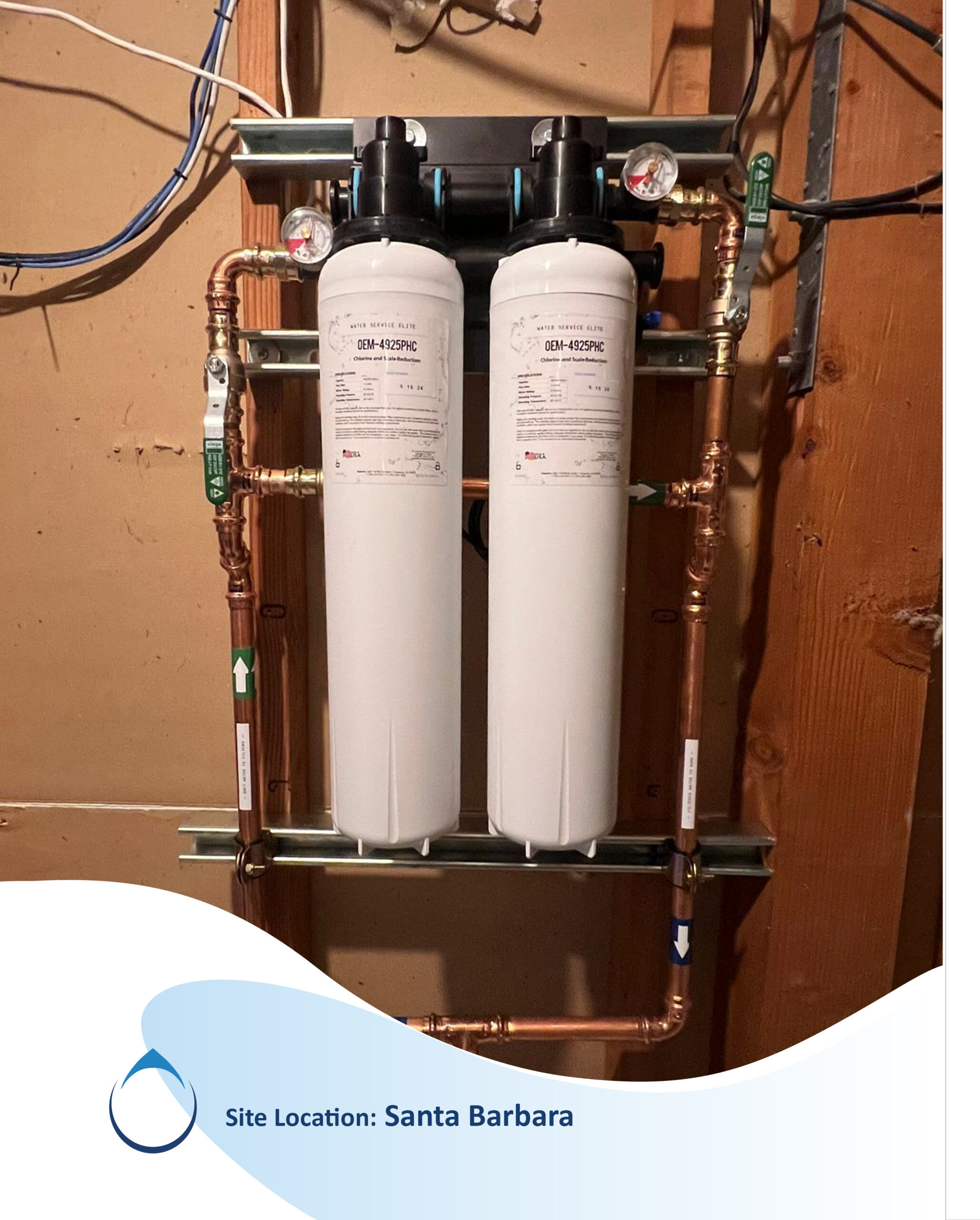

At the main water inlet(point-of-entry) to protect every tap
In mechanical rooms, basements, or utility closets
Key Use-Cases
Whole-Home Protection
Chlorine & scale control for showers, faucets, laundry, water heaters
Equipment Longevity
Extends life of boilers, softeners, and ice makers
Consistent Quality
Delivers treated water for all domestic and light-industrial needs
Technical Informational
Filtration & Performance

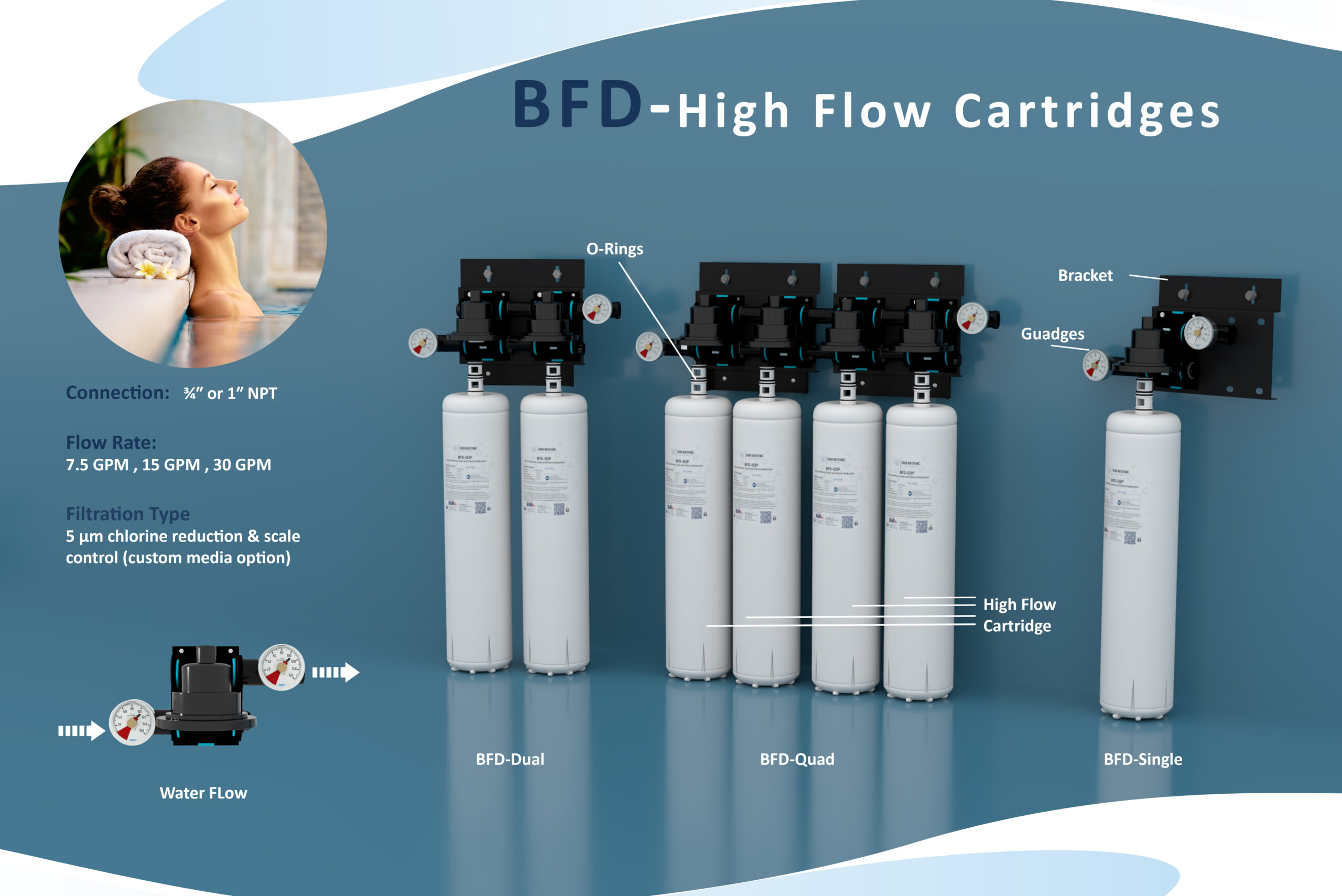

Model | Flow Rate | Dimensions (H×W×D) | Connection | Filtration Type |
BFD-Single | 7.5 GPM | 11 ¾″ × 25″ × 7″ | ¾″ or 1″ NPT | 5 µm chlorine reduction & scale control (custom media option) waterserviceelite.com |
BFD-Dual | 15 GPM | 16″ × 25″ × 7″ | ¾″ or 1″ NPT | 5 µm chlorine reduction & scale control (custom media option) waterserviceelite.com |
BFD-Quad | 30 GPM | 26 ½″ × 25″ × 7″ | ¾″ or 1″ NPT | 5 µm chlorine reduction & scale control (custom media option) waterserviceelite.com |
Key Features:
BFD(Best Filter Design)High flow water cartridges are
specialized filters designed to handle high volume water flow rates while still effectively removing contaminants.
These cartridges are typically used in residential,
commercial or light industrial applications where large
volumes of water need to be treated quickly and
efficiently.
They are made with durable materials such as
polypropylene or polyester and are designed to
withstand higher water pressure and temperatures
(refer to the spec sheet).
BFD-Single
1 cartridge, 7.5 GPM flow rate
Product Specifications
BFD-Dual
2 cartridges, 15 GPM flow rate
Product Specifications

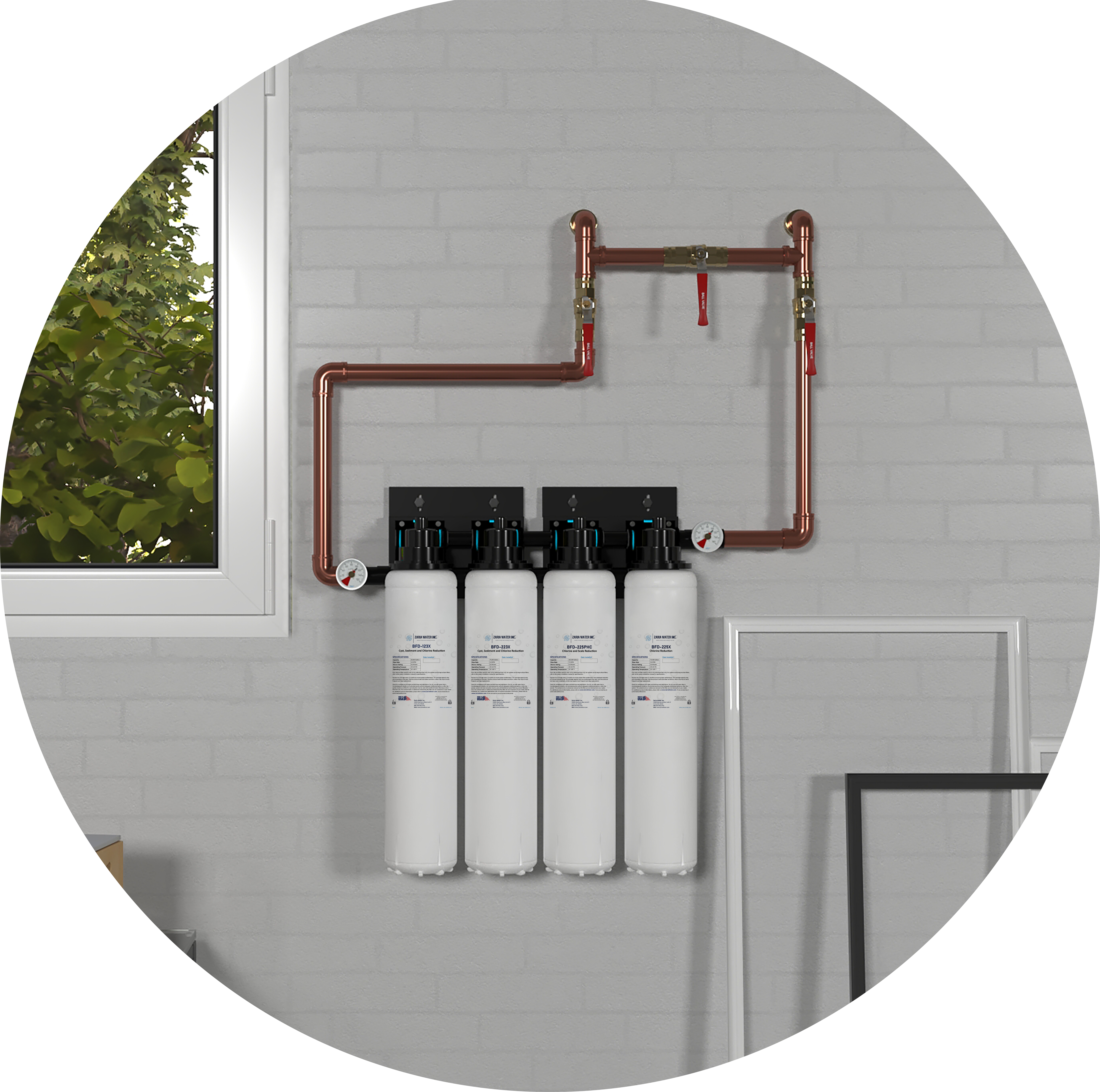

BFD-Quad
4 cartridges, 30 GPM flow rate
Product Specifications
