Water Service ELITE

Advanced Ultra-Filtration Platform

Our Advanced Ultra-Filtration Platforms come in three configuration options:

UF- Platform 15:  Up to 15 GPM flow rate

UF- Platform 30: Up to 30 GPM flow rate

UF- Platform 60:  Up to 60 GPM flow rate




Features:
• Pre-programmed controller, up to 80% less water waste, non-brine backwash that is safe for septic systems, daylight drain, or French drain
• Advanced sub micron filtration tested and certified by NSF
• Integrated sub-metering and leak detection
• Platform design for plug and play applications

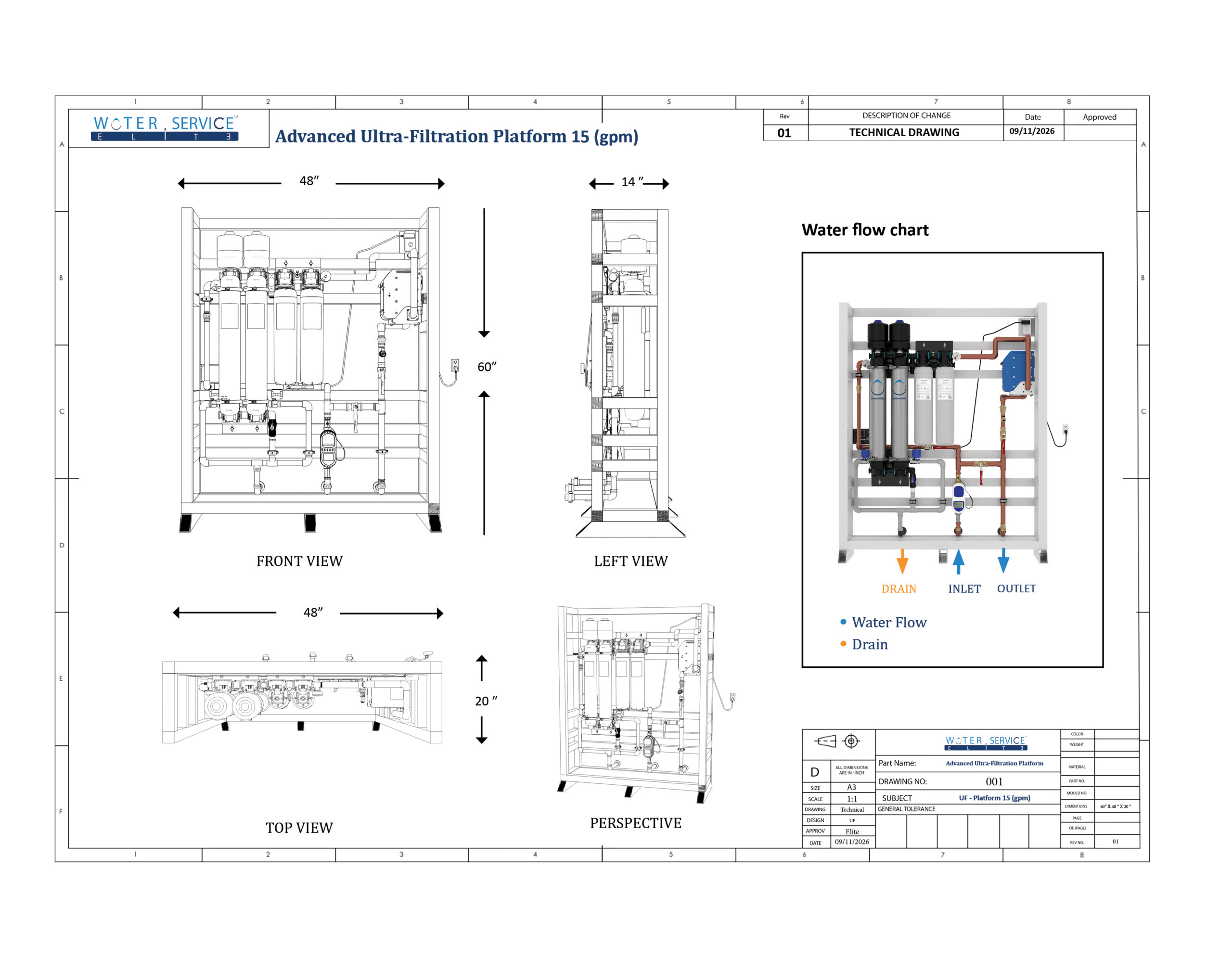

UF- Platform 15

Product Specifications

Maximum Flow Rate:

Overall Size:

Plumbing Size:

Feed Pressure:

Pulse Control:

Provides:

Button: Scan for augmented reality

15 GPM

48″ x 60″ x 18″

 3/4″

Min 65 psi (75-85 psi is ideal)

Fully programmable for control interval and duration

Up to 15 gpm
Hardness control up to 30 gpg
Chlorines
UV

UF- Platform 15

Product Specifications

Maximum Flow Rate:  15 GPM

Overall Size:  48″ x 60″ x 18″

Plumbing Size:  3/4″

Feed Pressure:  Min 65 psi (75-85 psi is ideal)

Pulse Control:  Fully programmable for control interval and duration

Provides:  Up to 15 gpm, Hardness control up to 30 gpg, Chlorines, UV

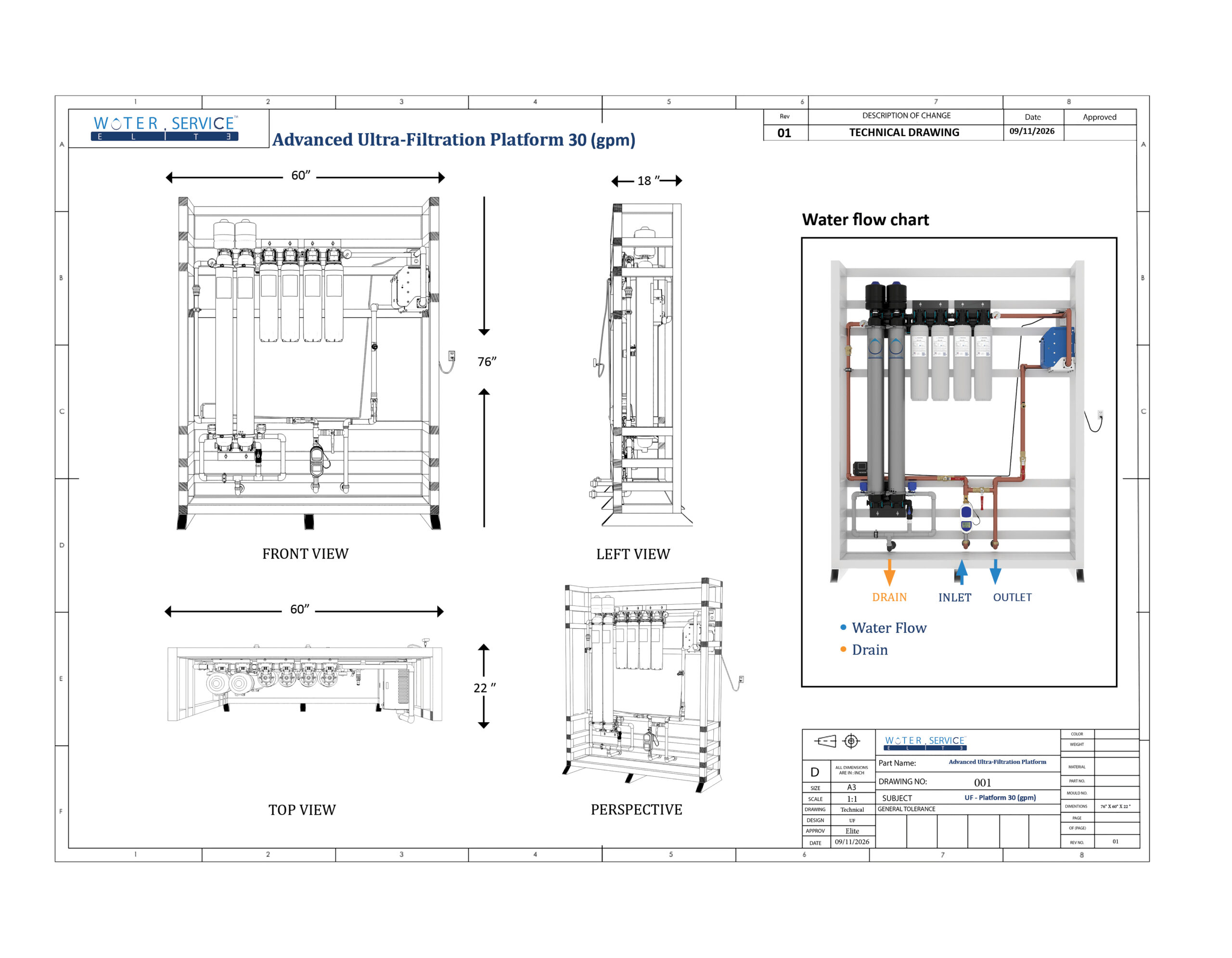

UF- Platform 30

Product Specifications

Maximum Flow Rate:

Overall Size:

Plumbing Size:

Feed Pressure:

Pulse Control:

Provides:

Button: Scan for augmented reality

30 GPM

60″ x 76″ x 22″

 1″

Min 65 psi (75-85 psi is ideal)

Fully programmable for control interval and duration

Up to 15 gpm
Hardness control up to 30 gpg
Chlorines
UV

UF- Platform 30

Product Specifications

Maximum Flow Rate:  30 GPM

Overall Size:  60″ x 76″ x 22″

Plumbing Size:  1″

Feed Pressure:  Min 65 psi (75-85 psi is ideal)

Pulse Control:  Fully programmable for control interval and duration

Provides:  Up to 15 gpm, Hardness control up to 30 gpg, Chlorines, UV

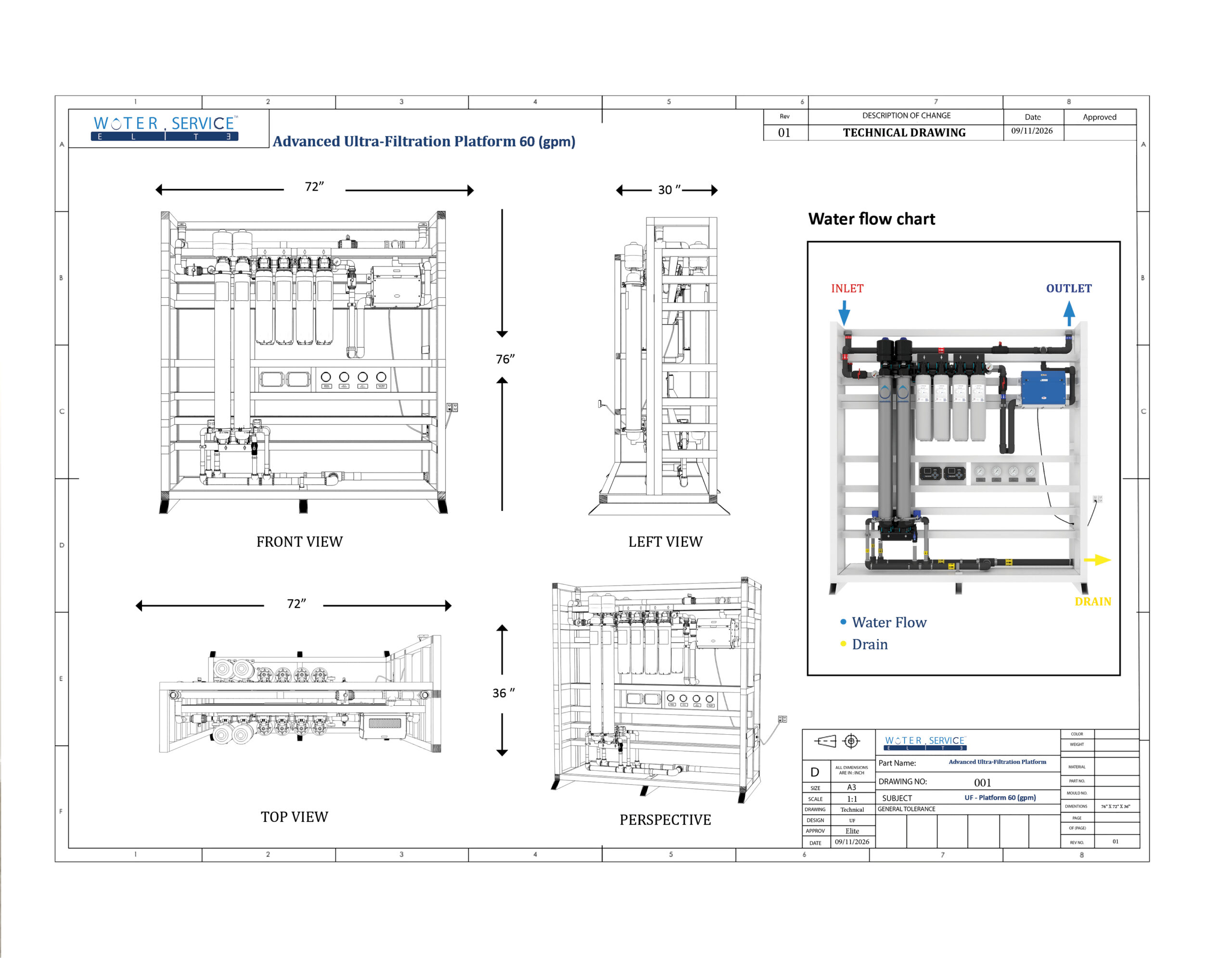

UF- Platform 60

Product Specifications

Maximum Flow Rate:

Overall Size:

Plumbing Size:

Feed Pressure:

Pulse Control:

Provides:

Button: Scan for augmented reality

60 GPM

72″ x 76″ x 36″

 2″

Min 65 psi (75-85 psi is ideal)

Fully programmable for control interval and duration

Up to 15 gpm
Hardness control up to 30 gpg
Chlorines
UV

UF- Platform 60

Product Specifications

Maximum Flow Rate:  60 GPM

Overall Size:  72″ x 76″ x 36″

Plumbing Size:  2”

Feed Pressure:  Min 65 psi (75-85 psi is ideal)

Pulse Control:  Fully programmable for control interval and duration

Provides:  Up to 15 gpm, Hardness control up to 30 gpg, Chlorines, UV
